Khoom Taw Qhia

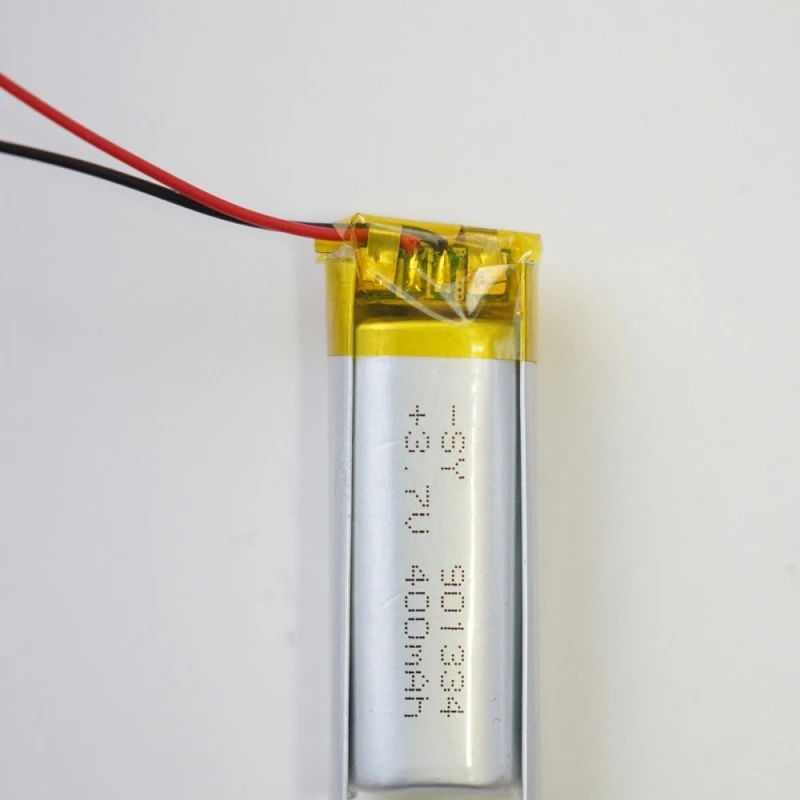

Lub Lithium Ion Polymer Battery 3.7 V 400mAh yog lub siab -zog- ceev rechargeable lithium polymer roj teeb muaj rau kev txiav txim ntau thiab kev hloov kho, haum rau cov khoom siv hluav taws xob me me thiab cov khoom siv nqa tau.
|
Cov khoom |
Specifications |
|
Roj teeb |
3.7v 400mah lipo roj teeb |
|
Charge voltage |
4.2V |
|
Nominal voltage |
3.7V |
|
Nominal muaj peev xwm |
360mAh 0.2C tso zis |
|
Charge tam sim no |
Standard Charging: 0.5C Ceev ceev: 1.0C |
|
Standard Charging method |
0.5C CC (tam sim no tsis tu ncua) them rau 4.2V, ces CV (tsis tu ncua voltage 4.2V) them kom them tam sim no poob qis dua lossis sib npaug rau 0.05C |
|
Lub sijhawm them nyiaj |
Kev Them Nqi: 2.75hours (Ref.) Tus nqi nrawm: 2hours(Ref.) |
|
Max.charge tam sim no |
1.0C |
|
Max.discharge tam sim no |
1.0C |
|
Tso tawm txiav- tawm qhov hluav taws xob |
2.75V(0.2C) |
|
Perating kub |
Kev them nyiaj yug: 0℃~ 45℃Tawm: 0℃~ 45℃arging: 0℃~ 45 degree |
|
Tshem tawm: Cia kub 0℃~ 45 degree |
-10℃~ +45 degree |
|
Dimension |
Ntev: 50 ± 2mm (tsis suav nrog tab) Dav: 20 ± 0.5mm Thickness: 10 ± 0.2mm |
|
Tso Test |
Lub cell yuav tsum tau muab tshem tawm los ntawm qhov siab ntawm 'meter' ob zaug mus rau hauv av pob zeb. Tsis muaj hluav taws, tsis muaj dej |
|
Lub sijhawm voj voog |
Ntau dua lossis sib npaug li 300 npaug |
Khoom nta
Lightweight Design:Lub roj teeb nta lub teeb yuag aluminium ntawv ci casing, hnyav dua 12 grams, ua rau nws yooj yim rau kev koom ua ke rau hauv cov khoom siv nqa tau yooj yim.
Kev nyab xeeb siab:Lub Lithium Ion Polymer roj teeb 3.7 V 400mAh tau tsim - nyob rau hauv overcharge, tshaj - tawm, thiab luv - tiv thaiv Circuit Court. Cov nplaim hluav taws-cov khoom siv hluav taws xob ua kom muaj kev nyab xeeb dua.
Fast Charging:Txhawb 1C them ceev ceev, them tag nrho hauv 2 teev xwb.
Lub Neej Ntev:Siv siab -cov ntaub ntawv lithium polymer zoo, ua tiav lub neej voj voog ntawm Ntau dua lossis sib npaug rau 300 cycles, muab kev ua haujlwm ruaj khov rau ntau dua 2 xyoos hauv kev siv ib txwm.
Yog vim li cas peb thiaj li yog lub tuam txhab ua lag luam ntawm Lithium Ion Polymer roj teeb 3.7 V 400mah
Cov cuab yeej tsim khoom siab heev
Nruab nrog ntau pua lub siab-cov tshuab ua haujlwm siab, suav nrog cov tshuab winding, mixers, lub tshuab nqus tsev, tsis siv neeg slitting tshuab, thiab cov khoom ntim puv puv.
Dav siv thaj chaw
Cov khoom siv dav siv hauv Bluetooth headsets, smart wearables, smart homes, smart healthcare, GPS, drones, me me lighting, and many other fields.
Ntau yam khoom kab
Muab TWS roj teeb, 30-90 series, them ceev ceev, 1-3C series, thiab cov roj teeb customized kom tau raws li qhov xav tau ntawm ntau yam khoom kawg.
Comprehensive Certification System
Tuav CCC daim ntawv pov thawj, ISO9001 zoo system ntawv pov thawj, UL ntawv pov thawj, KC ntawv pov thawj, thiab RoHS tus qauv ntawv pov thawj.
Cov lus nug nquag
Q: Kuv puas tuaj yeem tso tus qauv txiav txim? Lub sij hawm xa tuaj yog dab tsi?
A: Yog lawm, tus qauv xa khoom yog 3-10 hnub, tso cai rau kev ua tau zoo thiab kev soj ntsuam zoo.
Q: Lub sijhawm khoom xa tuaj rau ntau qhov kev txiav txim yog dab tsi?
A: 2-7 hnub rau hauv- cov khoom hauv Tshuag, kwv yees li 25-30 hnub rau kev tsim khoom loj.
Q: Lub roj teeb muaj peev xwm puas yog?
A: Yog, cov ntaub ntawv xeem tau muab; lub peev xwm tiag tiag yog feem ntau siab dua li lub peev xwm nominal.
Q: Cov khoom siv twg yog Lithium Ion Polymer Battery 3.7 V 400mAh haum rau?
A: Haum rau Bluetooth headsets, smart bracelets, drones, thiab lwm yam khoom siv hluav taws xob portable.
Q: Yuav ua li cas ntxuav lub roj teeb?
A: So lub casing nrog ib daim ntaub qhuav, tsis txhob ua kua.
Q: Puas yog luv - Circuit Court tiv thaiv?
A: Yog. Nws muaj ib qho ua tau - luv luv - Circuit Court tiv thaiv uas tau txiav tawm tam sim no thaum muaj qhov luv luv.
